Product Introduction：

 The mechanical principle of a peristaltic pump filling machine is very simple. It pumps fluid by alternately squeezing and releasing the pump tubing. Just as when you pinch a liquid-filled tube between two fingers, as your fingers move, a vacuum is created at the inlet end of the pump tubing, causing the liquid inside to flow, and the liquid then flows out of the outlet end.

Features：

Features of Peristaltic Pumps:

1. Clean and contamination-free: The fluid only passes through and comes into contact with the peristaltic pump tubing.

2. Constant flow, high precision, and adjustable flow rate: High repeatability, excellent stability, and easy flow rate adjustment.

3. Low shear force: An ideal tool for conveying shear-sensitive and highly corrosive fluids.

4. Corrosion Resistance: Capable of handling various fluids, such as organic solvents and corrosive liquids.

5. Capable of Running Dry: Peristaltic pumps can operate dry for extended periods, transport fluids without water, and can also convey air or handle three-phase mixtures of gas, liquid, and solid. During operation, the maximum speed of most peristaltic pumps is typically below 600 RPM, ensuring that even when conveying air, excessive heat is not generated.

6. Self-priming Capability: Self-priming without the need for priming or draining.

7. Shut-off Valve Function, No Siphoning, No Seals: Provides excellent sealing performance with shut-off and check valve functions.

8. Bidirectional Pumping: Reversing the rotation of the pump impeller enables both forward and reverse pumping.

9. Simple maintenance: Only the peristaltic pump tubing needs to be replaced; there is no need to replace valves or seals.

10. High-temperature resistance: The peristaltic pump tubing can operate at temperatures up to 100°C.

Product Parameters：

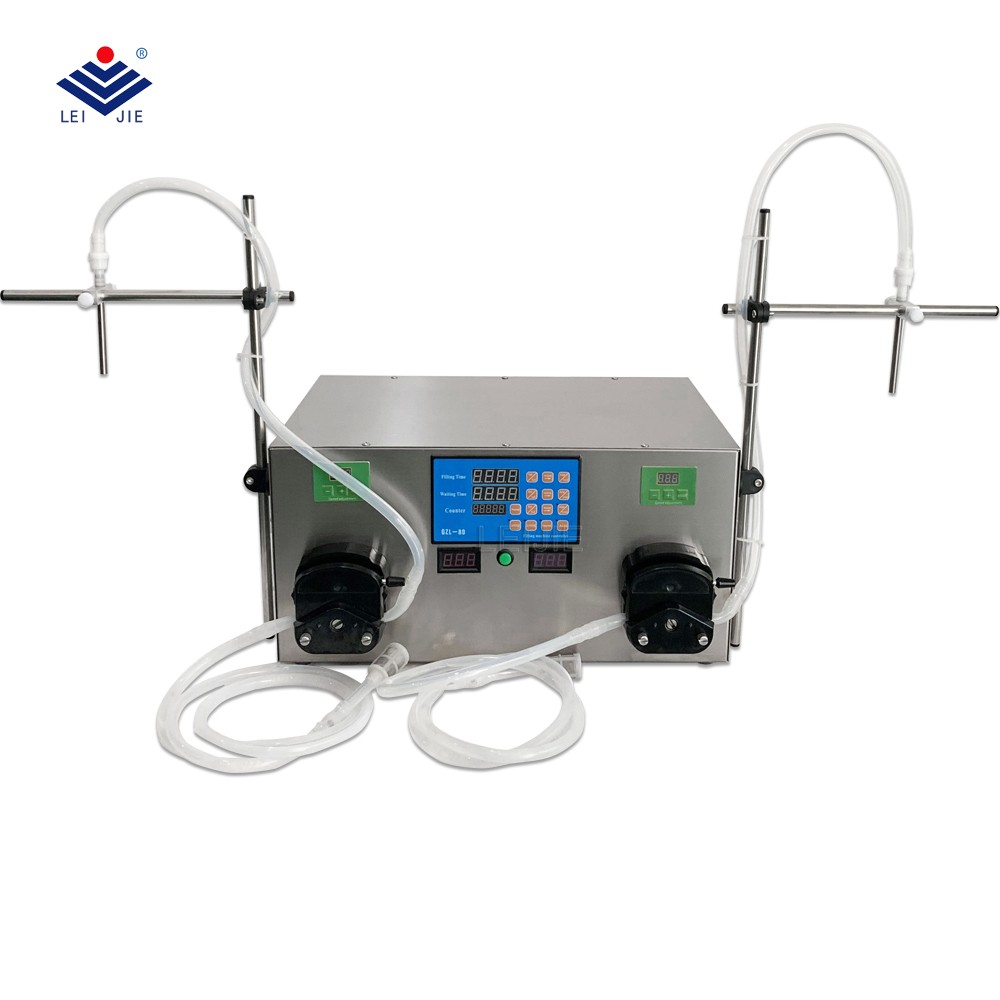

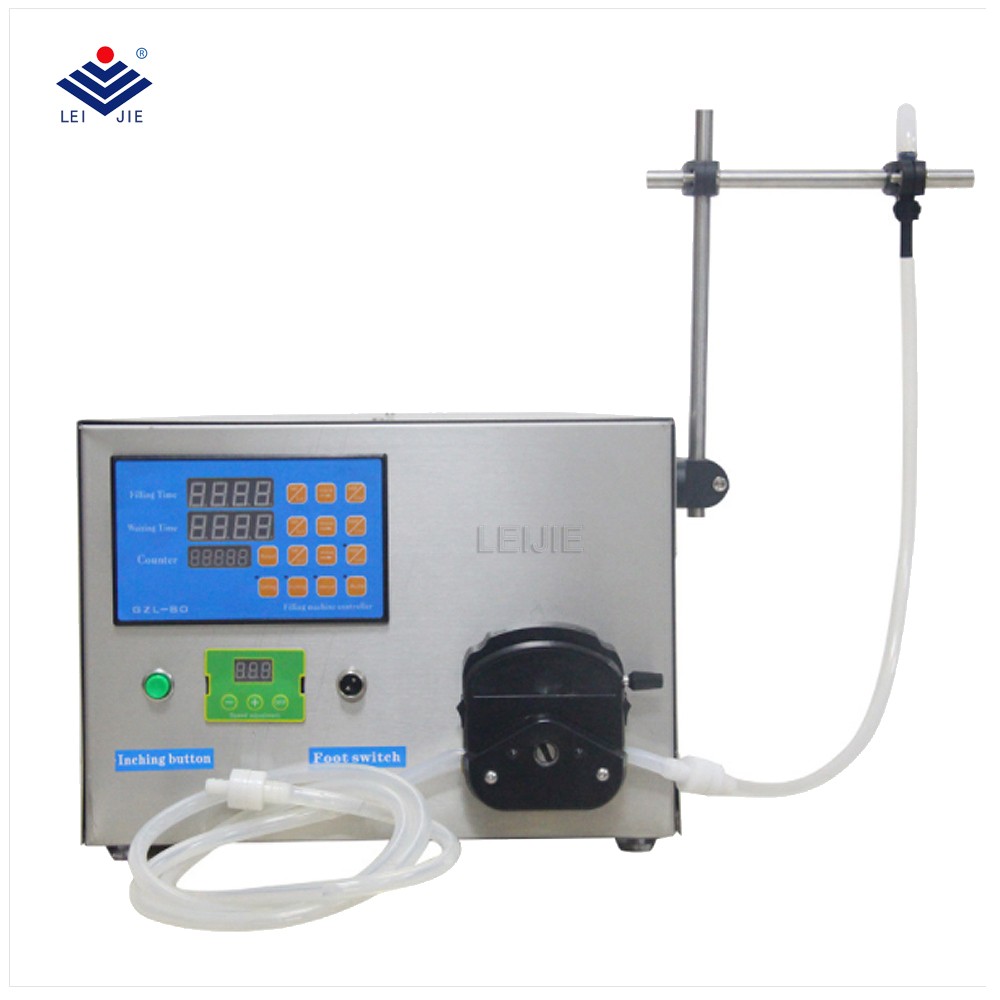

Product Name: 2.4L Peristaltic Pump Filling Machine

Voltage: 110V-220V

Power: 500W

Filling Flow Rate: 2L/min

Maximum Suction Lift: 2M

Repeatability: ±1%

Machine Dimensions: 38*36*27cm

Machine Weight: 10KG

Packaging Dimensions: 40*39*29cm

Packaging Weight: 11.5KG

Recommended Filling Range: 3ML-200ML

Power-Off Memory: Yes

Leak-Proof Discharge: Yes

Application Cases：

Applications: The filling machine does not come into contact with the material. It is particularly suitable for highly corrosive products such as biopharmaceuticals, eye drops, oral solutions, sulfuric acid, hydrochloric acid, and 84 disinfectant. By replacing the tubing with fluorocarbon peristaltic tubing, it can also be used for dispensing essential oils and solvents, as well as various scented liquids such as e-cigarette liquids and perfumes. It is widely used in the daily chemical, food, beverage, pesticide, and pharmaceutical industries for a variety of colored liquids (such as nail polish, pigments, and ink) and culture media.
