Product Introduction：

The ceramic pump filling machine utilizes precision ceramic pumps, with key components—such as the plunger, pump sleeve, and valve core—all manufactured from high-performance ceramics (oxidic ceramics). Ceramic materials possess extremely high hardness and density, making them not only wear-resistant and durable but also chemically stable; they do not react with the filled product or release contaminants. This model offers high filling accuracy and is capable of dispensing very small volumes of liquid.

Features：

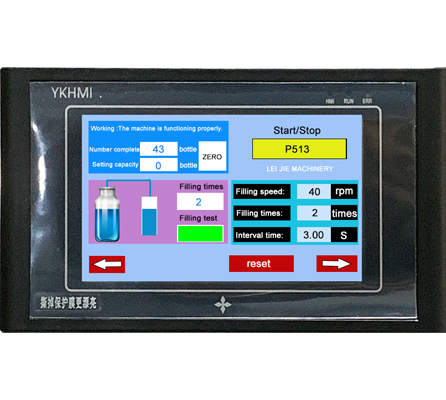

1.Operated via a touchscreen interface with intelligent signal switching control;

2.Features a corrosion-resistant, valve-less ceramic pump and a 304 stainless steel housing;

3.Enables high-precision, metered filling of liquids.

Product Parameters：

Product Name: Single-Head Ceramic Pump Micro-Filling Machine

Voltage: 110V–220V

Power: 120W

Discharge Volume per Revolution: 0.2–2.8 mL

Recommended Filling Range: 0.2–5 mL

Filling Accuracy: ±1%

Machine Dimensions: 47 × 29 × 33 cm

Machine Weight: 10 kg

Packaging Dimensions: 52 x 29 x 37 cm

Packaging Weight: 16 kg

Power-Off Memory: Yes

Leak-Proof Dispensing: Yes

Application Cases：

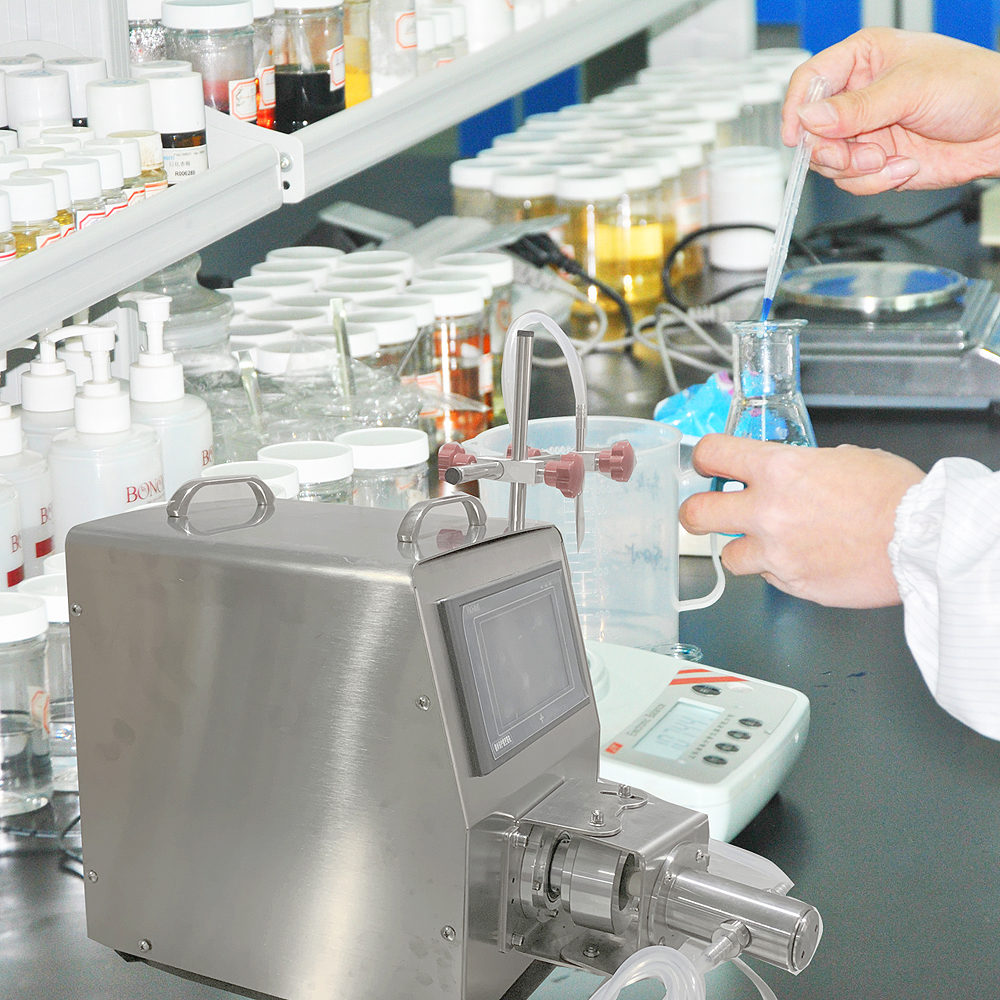

1.Laboratories, research institutes, pharmaceutical plants, cosmetics factories, etc.;

2.Widely used for precision volumetric filling in the pharmaceutical, food, chemical, and cosmetics industries;

3.Used for precision volumetric filling of liquids such as biological reagents, oral solutions, injectable solutions, high-end cosmetics, serums, e-liquids, and disinfectants;

4.Used for precision volumetric filling of various acidic, alkaline, and corrosive liquids.
