Magnetic pump liquid filling machine

Magnetic pump filling machine

Product Introduction：

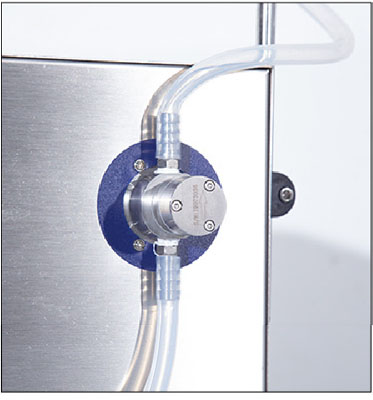

A magnetic drive pump filling machine primarily consists of several components, including the magnetic drive pump, controller, filling head, and piping. The magnetic drive assembly of a magnetic drive pump consists of an outer magnetic rotor, an inner magnetic rotor, and a non-magnetic isolation sleeve. When the electric motor drives the outer magnetic rotor to rotate via a coupling, the magnetic field penetrates the air gap and the non-magnetic isolation sleeve, causing the inner magnetic rotor—which is connected to the impeller—to rotate in sync. This achieves contactless, synchronous power transmission, transforming the prone-to-leakage dynamic seal structure into a zero-leakage static seal structure.

Features：

1.The pump body is made of 316L stainless steel, and the housing is made of 304 stainless steel.

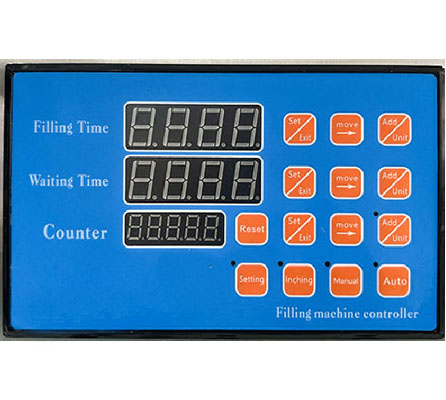

2.The controller features a digital display, making it intuitive and easy to use.

3.Since the pump shaft and internal magnetic rotor are completely enclosed by the pump body and the isolation sleeve, this design completely eliminates any leakage, dripping, or seepage.

Product Parameters：

Product Name:	1 head filling machine	2 heads filling machine	4 heads filling machine	6 heads filling machine	8 heads filling machine	10head filling machine
Voltage:	110V/220V	110V/220V	110V/220V	110V/220V	110V/220V	110V/220V
Power:	50W	100W	200W	300W	400W	500W
Max Pump Flow Rate：	4L/Min 5.5L/Min	4L/Min 5.5L/Min	4L/Min 5.5L/Min	4L/Min 5.5L/Min	4L/Min 5.5L/Min	4L/Min 5.5L/Min
Max Suction Head：	2M	2M	2M	2M	2M	2M
Accuracy（ml）:	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Machine Size (cm):	383627	453125	583627	704428	825228	926029
Unit Weight（kg）:	9.5KG	6.5KG	15KG	21KG	29KG	38KG
Package Size(cm)：	403929	474131	614432	765137	895937	1006738
Package Weight(kg):	9KG	11KG	20KG	31KG	42KG	53KG
Filling Range(ml):	1-200ML 3-1000ML	1-200ML 3-1000ML	1-200ML 3-1000ML	1-200ML 3-1000ML	1-200ML 3-1000ML	1-200ML 3-1000M
Power-Off Memory:	Yes	Yes	Yes	Yes	Yes	Yes
Anti-Drip Feature:	Yes	Yes	Yes	Yes	Yes	Yes

Note: In addition to the flow pump mentioned above, we also offer high-flow magnetic drive pumps with flow rates of 7 L/min, 9 L/min, 12 L/min, and 23 L/min. You can select the appropriate pump based on your actual filling requirements. The maximum filling capacity is 5 L per cycle.

Application Cases：

The material-contact parts of the pump housing are made of imported 316L stainless steel, making it suitable for handling various corrosive, low-viscosity, particle-free liquids, such as: pharmaceuticals (medicinal oils, medicinal wines, alcohol, eye drops), chemicals (solvents, acetone), oils (edible oils, essential oils), cosmetics (toners, makeup removers, sprays), foods (withstands temperatures up to 100°C, such as milk and soy milk), beverages, condiments, and other particle-free liquids; as well as low- and high-foam liquids (contact lens solution, cleaning agents), etc. It offers high filling accuracy and is suitable for laboratory use.
