Product Introduction：

The High-Speed Filling Machine utilizes a 316L-grade gear pump, a high-power servo motor, and a time-based metering system. It efficiently handles the rapid filling of various paste-like and liquid materials (excluding those containing particulates). It accommodates a wide range of filling materials, features precise servo motor control, and ensures stable, trouble-free operation.

Features：

1. High filling speed: Capable of filling 1,500–1,800 bottles per hour; features a dual-mode design supporting both self-priming and hopper-fed operation.

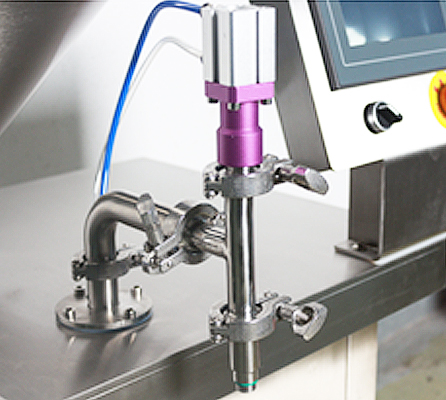

2. Versatile filling range: Capable of filling volumes starting from 5 grams with no upper limit; equipped with anti-drip filling nozzles to ensure precise and accurate dosing.

3. Intuitive user interface: Features a "foolproof" control panel that makes operation simple and easy to master.

4. Compact footprint: Occupies minimal floor space; the pump body features a quick-release design, making disassembly and cleaning simple and convenient.

5. High-precision 316 gear pump: Highly resistant to corrosion, acids, and alkalis; requires no replacement of sealing rings.

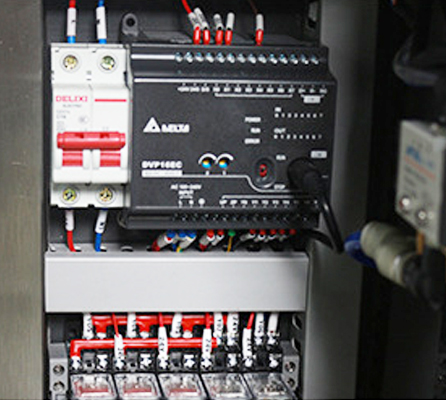

6. Premium components: The entire machine is constructed using top-tier brand-name components, including Airtac pneumatic systems, a Delta PLC, and a touchscreen interface.

7. Precision craftsmanship: The machine body features meticulous workmanship, with all right-angle weld joints finely polished and finished; internal wiring is neatly organized. It is enclosed within a transparent acrylic cover, allowing for constant visual monitoring of internal operations while ensuring the machine remains completely stable and vibration-free during operation.

Product Parameters：

Filling Range: >5g (Unlimited)

Filling Speed: 1–40 cycles/minute

Filling Method: Hopper / Self-priming

Applicable Bottle Height: 0.5–1000 mm (Customizable)

Applicable Bottle Mouth Diameter: 2–100 mm (Customizable)

Operation Mode: Manual / Automatic

Self-priming Tube: Ø38 mm

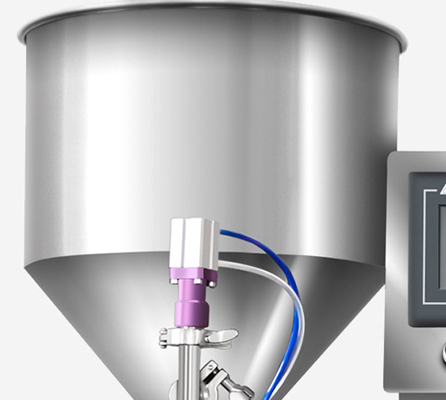

Hopper Capacity: 40 L

Machine Dimensions: 570 × 650 × 1270 mm

Machine Weight: Approx. 60 kg

Operating Air Pressure: 0.3–0.6 MPa

Filling Control: Servo Motor (750 W)

Filling Accuracy: ±0.5%

Voltage: 220 V / 50 Hz

Scope of Application：

The fully automatic multi-functional filling machine is widely applicable across industries such as cosmetics, daily necessities, food, pharmaceuticals, and chemical raw materials. It is suitable for filling a wide variety of products, including creams, lotions, facial creams, ointments, essential oils, laundry detergents, shampoos, body washes, semi-fluids, honey, taro paste, sesame paste, peanut butter, and various other high-viscosity materials.

Product Details：
