Product Introduction：

An automatic powder packaging machine is a piece of equipment capable of automatically completing the entire process—including bag forming, metering, filling, sealing, and cutting—and serves as the core equipment for the automated packaging of powdered materials.

It primarily utilizes screw-type or volumetric metering methods to achieve high-precision measurement and is driven by a PLC control system, ensuring the entire process is intelligent and automated. Below is a detailed introduction to its working principle, main types, technical specifications, and applicable scenarios.

⚙️ Working Principle: A Seamless Automated Process

The workflow of an automatic powder packaging machine can be summarized in the following steps:

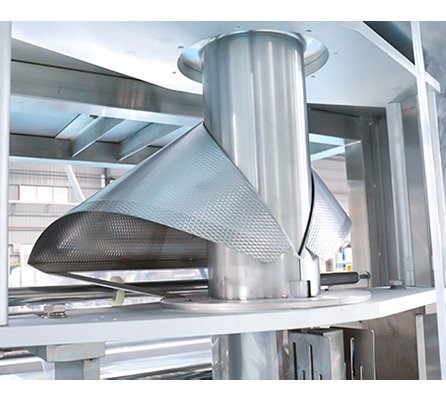

Bag Forming: The packaging film is shaped into bags by a forming device.

Measuring and Filling: This is the core process. Materials (such as milk powder, flour, etc.) enter the metering system via a hopper, where high-precision screw conveyors or volumetric metering discs accurately portion and fill the bags.

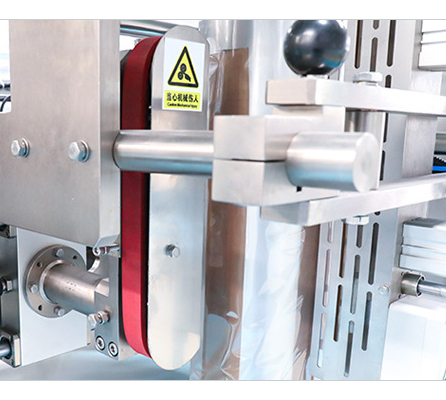

Sealing and Cutting: After filling, the machine automatically performs heat sealing and cutting to form individual finished bags.

Auxiliary Functions: The entire process can be integrated with auxiliary functions such as coding, nitrogen flushing for freshness preservation, and finished product conveyance, achieving multi-process integration.

Features：

1. The system features a touchscreen control panel with both Chinese and English interfaces and a fully stainless steel housing. Simply set the required parameters (such as fill volume and bag length) in the display unit, and the control system automatically optimizes the coordination of all operations to achieve the optimal packaging speed.

2. Utilizes an intelligent temperature controller with dual-channel control for horizontal and vertical sealing temperatures, ensuring strong seals, excellent sealing performance, flat and aesthetically pleasing bag shapes, and high packaging efficiency.

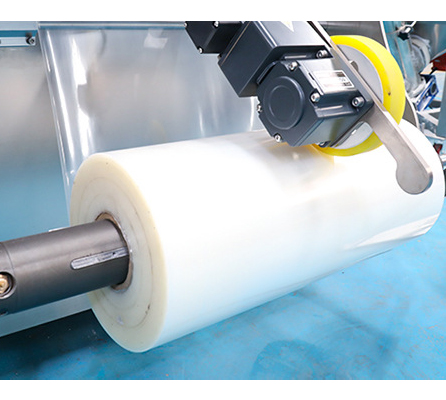

3. The bag forming system employs stepper motor microstepping technology to automatically track and position the bag’s color marks, enabling effortless bag forming operations and adjustments. It operates at high speed, runs smoothly, and produces low noise.

4. An advanced intelligent photoelectric tracking system with automatic compensation ensures automatic registration of double-sided printed patterns on the packaging bags, improving material utilization.

5. Packaging speed is infinitely adjustable within the rated range, with stop-on-open positioning.

6. The machine automatically performs all operations, including bag forming, weighing, filling, sealing, cutting, counting, and batch number printing.

7. Utilizes screw-type metering for accurate measurement of materials with uniform density, in compliance with national metrology standards.

Select feeding methods based on different powdered materials; choose high-speed machines according to production capacity and speed requirements; pair with metering rods suited to different packaging weights for higher precision; configure settings based on speed;

Multiple sealing methods available; stable operation and aesthetically pleasing packaging.

Product Parameters：

Model:                    DXD-420F                                                     DXD-520F

Packaging Speed:   5-70 bags/min                                        5-60 bags/min

Film Width Range:  120mm-420mm                                    160mm-520mm

Bag Dimensions: (L) 60–330 mm (W) 50–200 mm        (L) 80–350 mm (W) 70–250 mm

Bag Types:    Back-sealed bags, gusseted bags, stand-up pouches, perforated bags

Film Thickness:    0.04–0.09 mm

Air consumption:       0.8 MPa, 0.5 m³/min

Power Supply:    3 kW, 220 V, 50 Hz

Machine Dimensions:    1460 x 1050 x 1410 mm                       1480 x 1130 x 1450 mm

Total Weight:    400 kg                                                               480 kg

Packaging Capacity:     50–1000 mL                                       100–2000 mL

Scope of Application：

Suitable for milk powder, flour, milk tea powder, starch, seasoning powder, protein powder, construction powder, chemical powder, and more.

Product Details：
