A paste automatic packaging machine is an automated device designed to automatically execute the entire packaging process for paste or liquid materials—including metering, bag forming, filling, sealing, and cutting. Widely utilized across industries such as food, pharmaceuticals, chemicals, and daily consumer goods, it serves as a critical piece of equipment in modern production lines for enhancing efficiency and ensuring packaging quality.

Product Introduction：

The automatic paste packaging machine integrates electromechanical functions, features a fully Chinese (or English) display, and employs an advanced microcomputer chip to control the photoelectric tracking and alignment system, equipped with high-precision stepper motors.It precisely aligns the pattern on each packaging bag to the same position, with the control system managing the machine’s synchronization, fixed length, positioning, and speed. The CNC cutter is adjustable to automatically count and cut between 2 and 99 packages,

features automatic shutdown when paper runs out, and includes an automatic fault diagnosis function. Optional date printers or hot-stamping batch number devices are available. Performance: A series of operations—including bag forming, filling, counting, sealing, cutting,and finished product output—are all performed automatically. Applications: This machine is suitable for fully automatic quantitative packaging in the food, daily chemical, and pharmaceutical industries.

Features：

The automatic paste packaging machine can automatically perform bag forming, metering, filling, sealing, slitting, and counting, and can be configured with functions such as batch number printing according to customer requirements.

It employs an advanced microcomputer controller to drive a stepper motor for bag length control, ensuring stable performance, easy adjustment,

and accurate detection.

It features stepless speed regulation and can be configured with different filling mechanisms to accommodate the packaging of powdered products and other items.

Packaging Materials:

Polypropylene/Polyethylene, Aluminum Foil/Polyethylene, Polyester/

Aluminized/Polyethylene, Nylon/Reinforced Polyethylene, Paper/Polyethylene, Tea Filter Paper, etc.

Product Parameters：

型号:

Model:

DXD-240Y

DXD-320Y

DXD-420Y

制袋尺寸:

Packingag Size:

长（L）30~180mm宽(W)30~120mm

Length (L) 30–180 mm; Width (W) 30–120 mm

长（L）30~200mm宽(W)30~160mm

Length (L) 30–200 mm; Width (W) 30–160 mm

长（L）30~220mm宽(W)30~180mm

Length (L) 30–220 mm; Width (W) 30–180 mm

制袋方式

Packingag Shape

三边封/四边封/背封

Three or four side seal, or backside seal

三边封/四边封/背封

Three or four side seal, or backside seal

三边封/四边封/背封

Three or four side seal, or backside seal

计量范围:

Measuring：

1-50ml

5-100ml

20-500ml

计量方式：

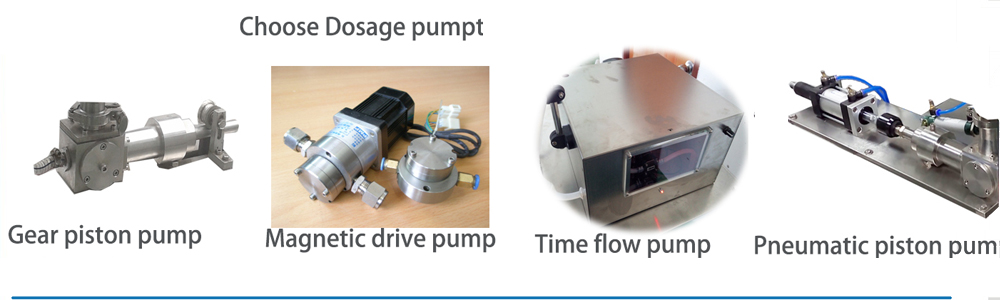

Measurement methods：

活塞泵/齿轮泵/转子泵/磁力泵

Piston Pump / Gear Pump / Rotor Pump / Magnetic Drive Pump

活塞泵/齿轮泵/转子泵/磁力泵

Piston Pump / Gear Pump / Rotor Pump / Magnetic Drive Pump

活塞泵/齿轮泵/转子泵/磁力泵

Piston Pump / Gear Pump / Rotor Pump / Magnetic Drive Pump

生产能力：

Metering pump：

40–60 袋/分

40–60 bags/min

20–45袋/分

20–45 bags/min

15–25 袋/分

15–25 bags/min

总功率：

Total Power：

1.6KW

2.1KW

2.4KW

整机重量：

Machine Weight：

250KG

280KG

320Kg

外型尺寸：

Product dimensions：

860X680X1750mm

860X780X1800mm

Scope of Application：

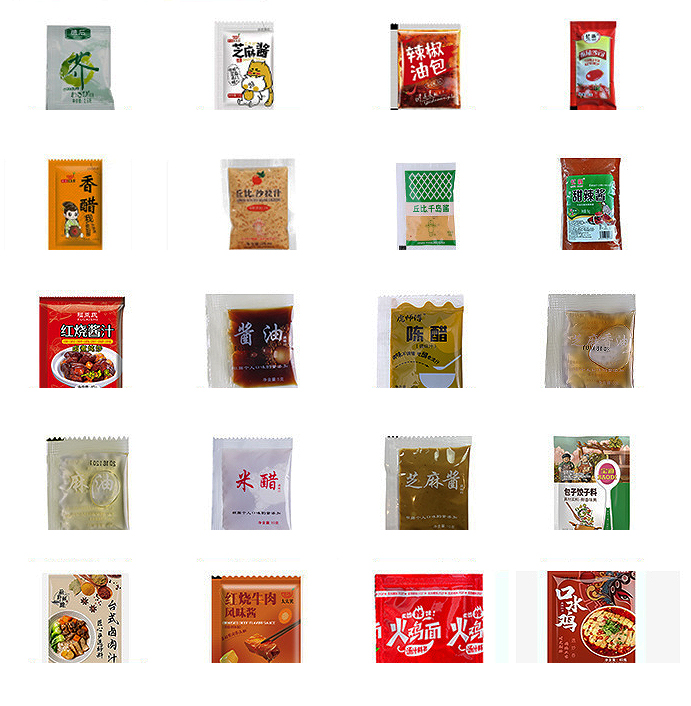

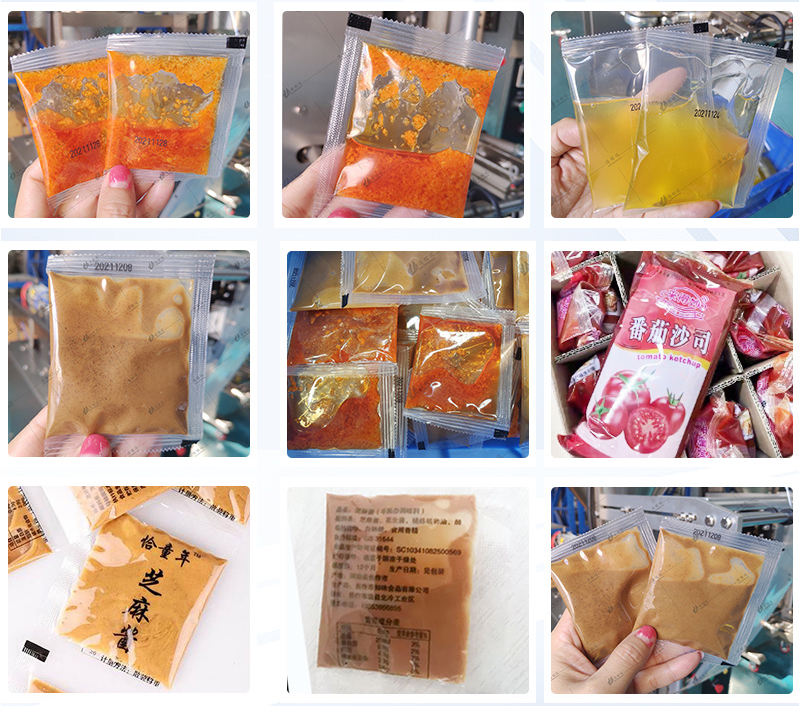

This machine is designed for packaging liquids such as honey, sauces, dressings, shampoo, beverages, oils, yogurt, and various pastes. It is suitable for use in the food, cosmetics, pharmaceutical, and pesticide industries.
