Product Introduction：

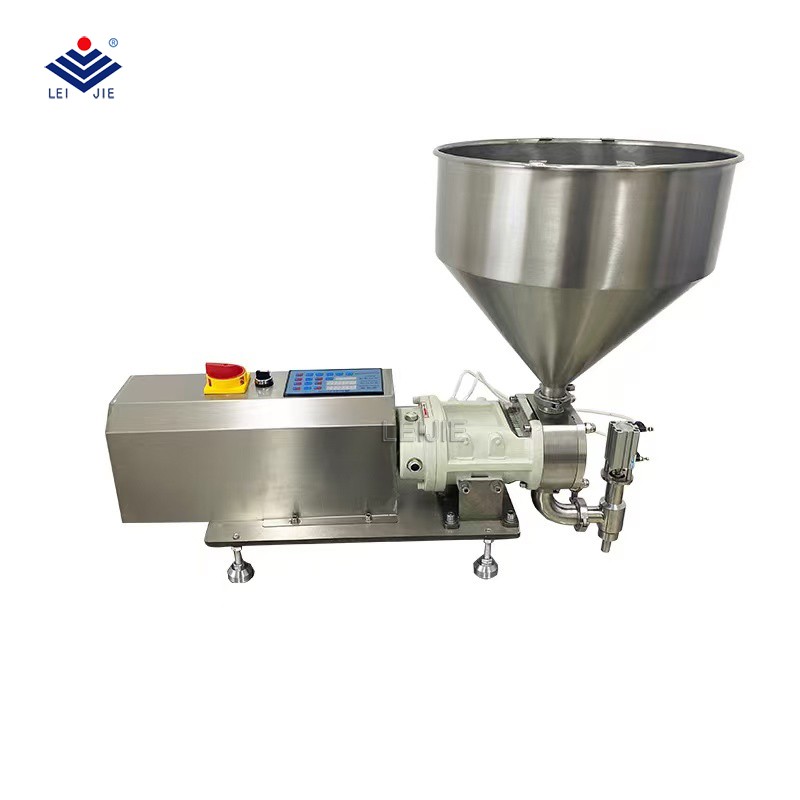

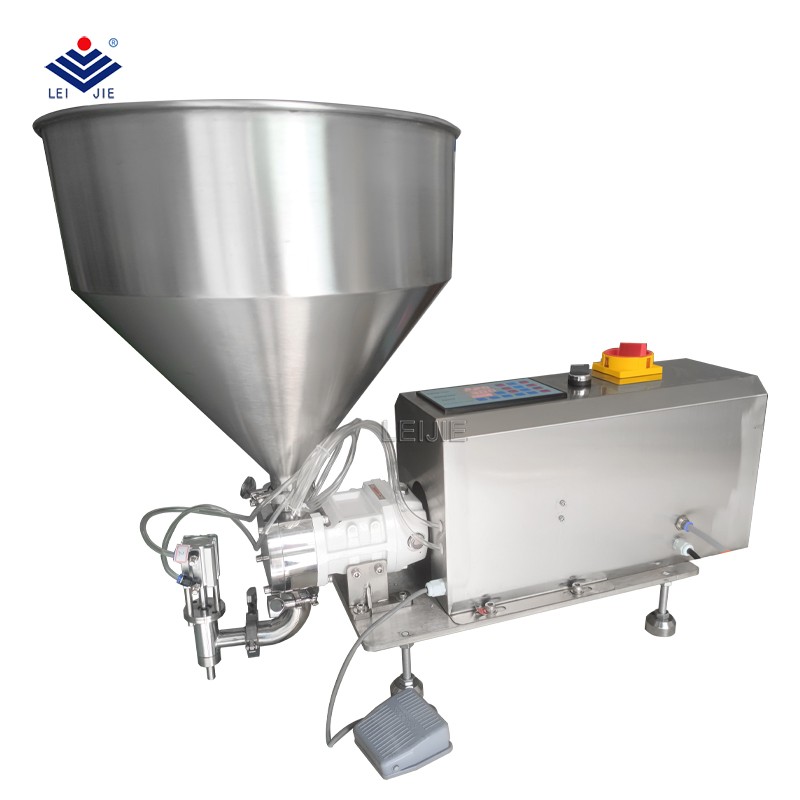

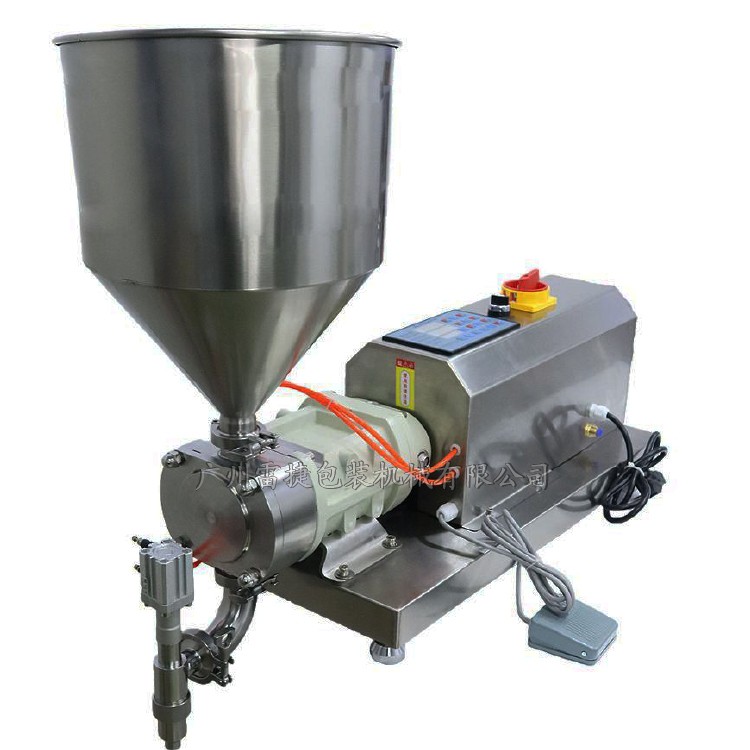

The semi-automatic rotor pump filling machine is a piece of filling equipment that combines the efficient conveying technology of rotor pumps with a semi-automated mode of operation. It is widely utilized across industries such as food, pharmaceuticals, and daily chemicals, and is particularly well-suited for handling complex materials characterized by high viscosity, or the presence of particles or fibers.

Its core mechanism lies in the use of a positive-displacement rotor pump for the conveying and metering of materials.

Core Drive: The rotor pump is typically driven by a servo motor.

Suction Process: A pair of rotors within the pump rotate in opposite directions to form a sealed working chamber. As the volume of this chamber expands, a negative pressure is generated, drawing the material from the hopper into the pump cavity.

Discharge Process: As the rotors continue to rotate, the volume of the working chamber contracts; the material is thereby pressurized and propelled toward the filling head. Integrated with a PLC control system that precisely regulates the pump's rotational speed and duration, the machine achieves high-precision quantitative filling.

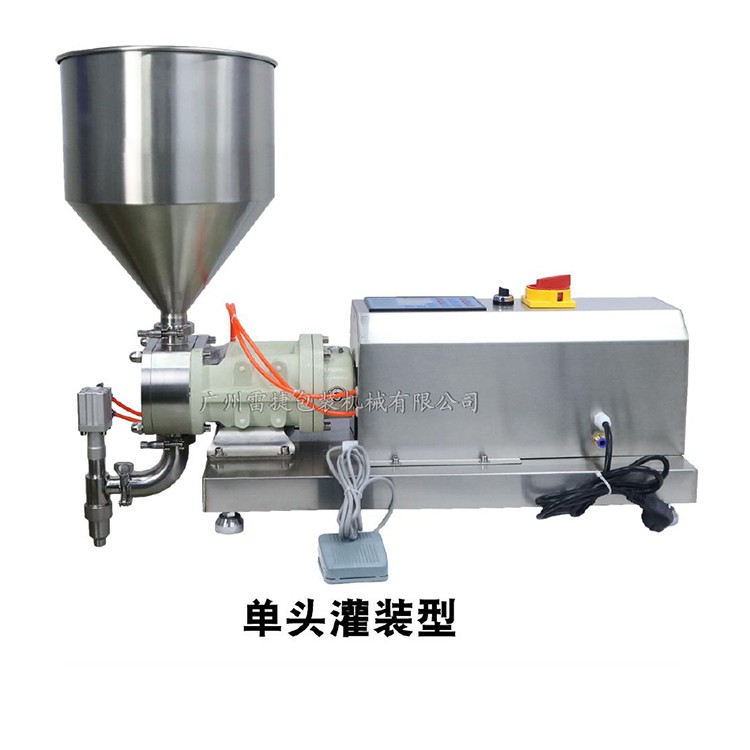

Operation Mode: The process involves manual placement of the container, followed by triggering the filling cycle via a foot switch or manual button; once the machine has completed the quantitative filling, the container is manually removed.

Features：

1. Wide filling range.

2. High filling speed.

3. High metering precision.

4. Multiple filling modes (Auto, Manual, Jog, Foot Pedal).

5. Supports external triggering (Foot Switch, Photoelectric Sensor, Proximity Sensor).

6. Long service life (Teflon seals / Mechanical seals [Optional]).

7. Anti-drip device.

8. One-touch reverse / Water flush function.

9. Capable of filling liquids, pastes, high-viscosity fluids, and materials containing solids.

10. Food-grade sanitary design.

Product Parameters：

Equipment Name: GTX Series Semi-Automatic Filling Machine

Power Supply: 220V, 50Hz

Chuck Size: 50.5mm / 64mm / 77.5mm

Filling Valve: Piston-type (Anti-drip)

External Activation: Foot Pedal Switch

Drive Control: Servo Motor + PLC Pulse Control

Air Consumption: ≤ 0.1 m³/min (Note: This machine is electrically driven; air consumption applies only to the anti-drip mechanism.)

Scope of Application：

Food Industry: Rotary pumps are frequently utilized in the food sector for filling liquid products such as sauces, beverages, dairy items, and condiments. For instance, a renowned beverage manufacturer employs rotary pumps for juice filling; this approach has not only boosted production efficiency but also ensured filling accuracy and minimized product waste. The hygienic design of these pumps complies with food-grade standards, facilitates easy cleaning, and effectively prevents cross-contamination.

Chemical Industry: In the production of products such as paints, inks, and adhesives, rotary pumps are capable of reliably conveying high-viscosity fluids while adapting to complex operating conditions. A paint manufacturing company adopted rotary pumps for pigment transfer, thereby resolving issues common to traditional pumps—specifically, susceptibility to clogging and rapid wear—and achieving a significant reduction in maintenance costs.

Daily Chemicals Industry: Rotary pumps are widely used in the daily chemicals sector for filling products such as shampoos and body washes. Their precise flow control capabilities ensure the uniformity of the filling process, thereby enhancing overall packaging quality.
