Product Introduction：

The horizontal roller-type small bottle labeling machine is a specialized automated labeling device designed specifically for cylindrical containers with small diameters that are difficult to keep upright on traditional vertical conveyor belts.

By positioning the bottles horizontally on the conveyor belt, it fundamentally resolves the issues of small bottles tipping over and inaccurate labeling, ensuring that labels are applied smoothly and evenly around the full circumference or half-circumference of the bottle.

Translated with DeepL.com (free version)

Features：

High Precision and Quality: By using the bottle body rather than the bottle bottom as the reference point, labeling accuracy can reach ±0.5 mm. The unique “rolling label application” technology effectively prevents wrinkles and air bubbles in the labels.

High Speed and Stability: Labeling speeds typically range from 80 to 350 bottles per minute. Most machines are equipped with Mitsubishi PLC control systems and servo motors to ensure stable operation.

Durable and Hygienic: The machine body is primarily constructed from stainless steel and high-grade aluminum alloy, featuring a robust structure that complies with production standards and is easy to clean.

Intelligent and User-Friendly: Equipped with a Delta touchscreen for intuitive operation.

Safe and Reliable: Features a “no-product, no-labeling” function, which saves on labels while preventing missed applications.

Product Parameters：

Technical Specifications of the Fully Automatic Horizontal Rotary Labeling Machine:

■ Machine Dimensions: 2500 (L) × 1250 (W) × 1750 (H) mm

■ Labeling Speed: 60–500 pcs/min

■ Labeled Object Height: 25–95 mm

■ Suitable Bottle Diameter: 12–30 mm

■ Label Height: 20–90 mm

■ Label Length: 25–80 mm

■ Labeling Accuracy: ±0.5 mm

■ Roll Inner Diameter: 76 mm

■ Roll Outer Diameter: 420mm

■ Power Supply: 220V, 2kW, 50/60Hz

■ Air Pressure for Printer: 5 kg/cm²

Optional Accessories for Fully Automatic Horizontal Rotary Labeling Machine:

■ High-Speed Hot Stamping Printer (Maximum Speed: 300 bottles/min)

■ Inkjet Printer (Maximum speed up to 500 bottles/min)

■ Transparent Label Detector

Consumables:

■ Synchronous Belt

■ Sponge Roller with Belt

■ Copper/Steel Type

■ Ribbon

■ Self-adhesive Labels

Translated with DeepL.com (free version)

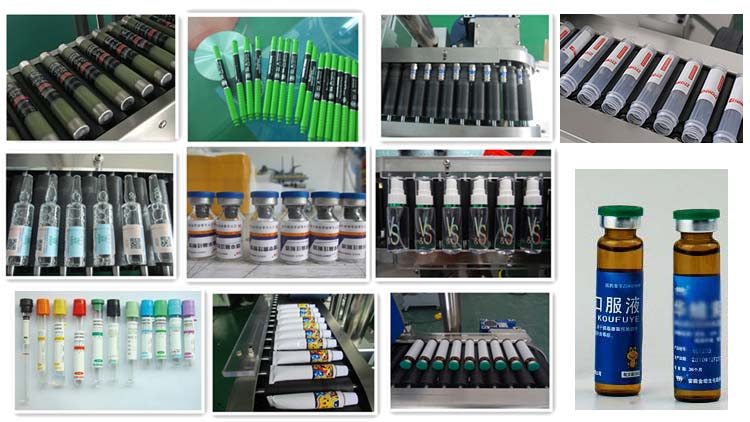

Scope of Application：

Pharmaceutical Industry: Ampoules, vials, oral liquid bottles, and various small injection vials.

Cosmetics/Personal Care Industry: Lipstick, lip balm, eyebrow pencils, solid glue sticks, test tubes, etc.

Food Industry: Small seasoning bottles, health supplement bottles, and oral liquid bottles.

Other Industries: Batteries, pen barrels, e-cigarettes, and other cylindrical components.
