Automatic Paging Labeling Machine

Automatic Paging Labeling Machine: Specifically designed for applying labels to various types of cards and plastic sheets. It features high-speed operation, exceptional precision, and bubble-free label application. Application examples include: wet wipe pouches and boxes, flat paper cartons, center-seam labeling for folders, protective film application for acrylics, and film application for large plastic components.

Product Introduction：

A sheet-feeding label applicator is an automated labeling machine specifically designed for sheet-like materials. It is primarily used to automatically separate (i.e., “sheet-feed”) products stacked in piles and then precisely apply self-adhesive labels to them. It is widely used in automated production lines across industries such as printing, packaging, food, pharmaceuticals, personal care, and electronics.

Features：

The workflow of a sheet-feeding labeling machine typically includes the following steps:

① Automatic Sheet Separation: Using a friction-based or vacuum-suction sheet-separation mechanism, stacked materials are separated one sheet at a time and fed onto the conveyor belt at equal intervals. The vacuum-suction method uses negative-pressure suction cups to pick up individual products (such as plastic bags or thin paper cards) without any physical contact throughout the process, effectively resolving issues such as static adhesion and multiple sheets overlapping that occur in traditional friction-based separation.

② Conveying and Positioning: The separated materials are conveyed smoothly along the conveyor belt, while sensors continuously monitor product positions and transmit real-time data to the control system.

③ Label Peeling and Application: Upon receiving a signal, the control system activates the label feed motor to peel the label from the backing paper and apply it to the designated position on the product.

④ Label Pressing: As the product passes through the label pressing rollers (such as large sponge rollers), the label is rolled flat to ensure a secure bond without bubbles or wrinkles.

⑤ Finished Product Collection: Finished products with labels applied are automatically collected by the receiving mechanism, achieving full-process automation.

Product Parameters：

Name	Automatic Paging Labeling Machine
Labeling Speed	20-200pcs/min(Depending on label length and bottle thickness)
Height of Object	30-200mm
Thickness of Object	20-200mm
Height of Label	15-110mm
Length of Label	25-300mm
Label Roller Inside Diameter	76mm
Label Roller Outside Diameter	350mm
Accuracy of Labeling	±0.8mm
Power Supply	220V 50/60HZ 0.75KW
Gas Consumption of Printer	5Kg/cm^2 (if add coding machine)
Size of Labeling Machine	1600(L)×550(W)×1600(H)mm
Weight of Labeling Machine	150Kg

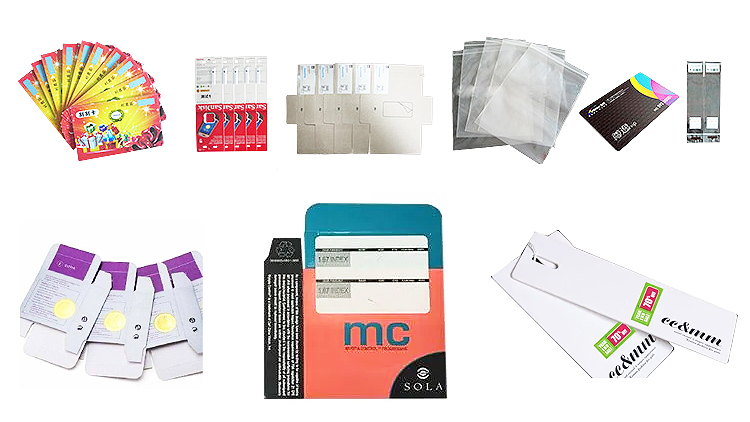

Scope of Application：

Mainly applied in separating paper sheets, name cards, labels, cards of various materials(such as telephone cards, IC cards, IP cards, re-paid cards),compound plastic packaging bags, carton sheets, paper bags and like these sheets in all kinds of thickness and material.
