High-Speed Automatic Capping Machine

The high-speed automatic capping machine is primarily used for capping various types of bottles. It is suitable for a wide range of caps, including standard caps, duckbill caps, nozzle caps, and others.

Product Introduction：

Features：

* Uses rubber (or silicone) wheels to mimic the motion of a human hand when capping, preventing damage to the cap edges.

* Belt-clamp positioning for high-speed capping

* Wide range of adjustable vertical and horizontal clearances

* Fast capping speed

* PLC and touchscreen control system

* Pneumatic components from leading manufacturers

Product Parameters：

Power supply(V/Hz)	AC 220/50
Power(W)	2000
Range of bottle cap diameters（mm）	25-80（可定制）
Air pressure(mpa)	0.5-0.7
Speed(bottle/min)	20-50
Product Dimensions （L×W×H）(mm)	2000X800X1600
Weight(kg)	250

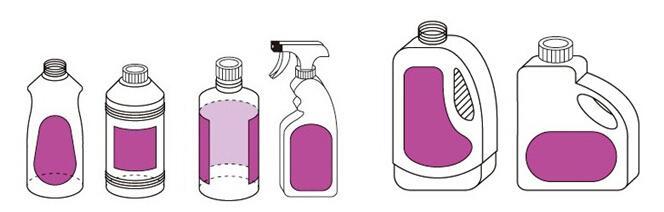

Scope of Application：

Standard Screw Caps: Such as various types of plastic screw caps, metal screw caps (tinplate caps), and aluminum caps.

Special-Function Caps: Widely used in the personal care industry, including pump caps, spray caps, spray pumps, duckbill caps, spout caps, as well as flip-top caps and essential oil caps.

Other Cap Types: Some models can also process tamper-evident caps, child-resistant caps, and pull-tab caps.
