Product Introduction：

The fully automatic tin can seaming machine features automatic can feeding, lid placement, seaming, and can discharge, enabling fully automated production. It can be connected to a filling machine at the front and to a labeling machine or inkjet printer at the rear. Suitable for sealing various types of round-shaped cans, including tinplate, aluminum, plastic, and paper cans, this machine offers reliable quality and simple operation, making it an essential and ideal piece of equipment for the food, beverage, pharmaceutical, and chemical industries. It can be used independently or integrated into other filling production lines.

Features：

The fully automatic tin can sealer features automatic can feeding, lid placement, sealing, and can discharge, enabling fully automated production.

1.    Equipped with 2 or 4 roller sealing blades, ensuring more uniform sealing pressure and meeting international standards for sealing performance;

2.    Features intelligent program design and touchscreen control for easy operation and setup;

3. The sealing rollers are imported from Taiwan and made of SKD31 Japanese die steel. Featuring a double-sided design, they have a service life exceeding 5 million sealing cycles;

4.    Includes settings for “no lid, no sealing” and automatic shutdown upon fault detection, effectively reducing equipment downtime;

5. Changing the can diameter requires replacing the die; the replacement and adjustment time is approximately 40 minutes;

6. Changing the can diameter requires replacing the following components: sealing head, lower lid applicator, turntable, and guard rail. For cans and lids made of different materials, the sealing rollers must also be replaced;

7. Adjusting the can height does not require replacing parts; a manual lead screw design is used, with height adjustment taking approximately 5–10 minutes;

8. Before shipment and delivery, the sealing performance is rigorously tested to ensure product quality;

Product Parameters：

Canning speed: 25–50 cans/min

Can height: 40–150 mm

Power consumption: 1.3 kW

Can diameter: 40–100 mm

Power supply: 220 V, 50 Hz

Sealing diameter: φ40–φ100 mm,

Can height: 40–150 mm;

An air compressor must be provided separately; compressor power: 3 kW or higher; air supply pressure: 0.6 MPa;

Applicable containers: Beverage cans, tin cans, aluminum cans, plastic cans

Main material: 304 stainless steel

Dimensions: L2000 (including conveyor belt) × W1000 × H1600 mm (assembled dimensions, including conveyor belt)

Weight: 500 kg

Scope of Application：

Fully automatic can sealing machines are widely used in the following industries:

Food industry: Canned foods (fruits, vegetables, meat, seafood), milk powder, condiments, eight-treasure porridge, snack foods, etc.;

Beverage industry: Carbonated beverages, fruit juices, tea beverages, functional beverages, etc.;

Pharmaceutical industry: Medication packaging, powdered health supplements, etc.;

Personal care industry: Metal can packaging for cosmetics, cleaning agents, and other products.

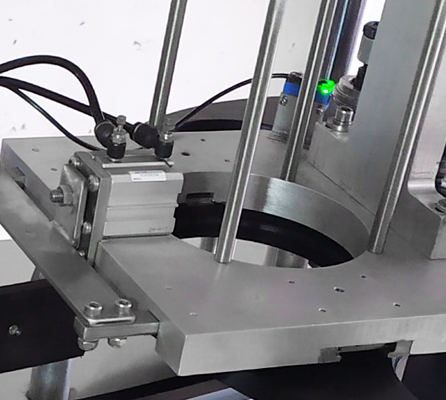

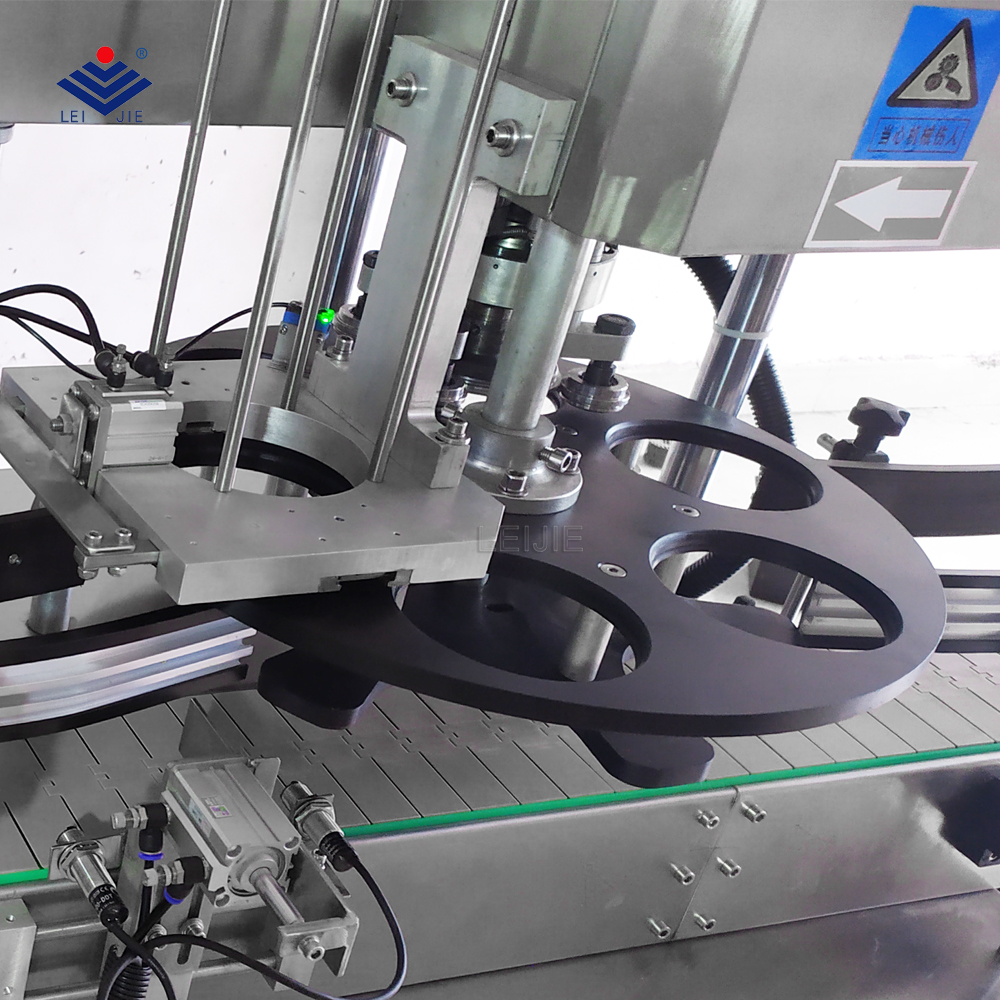

Product Details：
